Scanstrut DS-H6-BLK Horizontal Cable Seal - Black *3-Pack
Available Stock (1)
Pay with Affirm on orders over $50. See if you qualify
Scanstrut
Buy With Confidence - Authorized Dealer
Sku :
SCA-DS-H6-BLK-3Barcode :
0SCA-DS-H6-BLK-3
100% Brand new, authorized dealer
90 Day Returns on most items
Free delivery on most orders

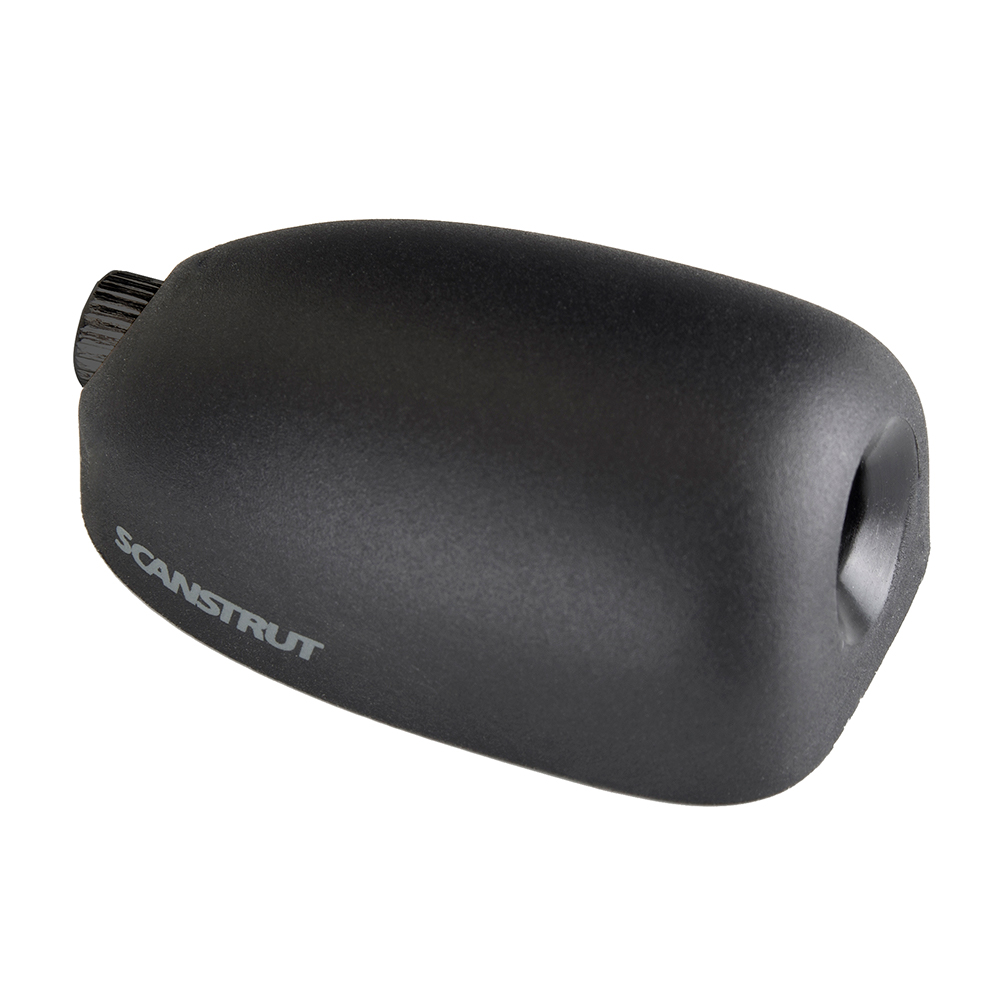

DS-H6-BLK Horizontal Cable Seal - Black *3-Pack
This horizontal cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antennas, and navigation light cables. A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting.
Features:
- Watertight installation - 100% waterproof with an IPX68 rating
- Easy and reliable installation - each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
- No Need to Remove Cable Connectors - split-seal option does not require connector removal during installtion.
- The low-profile construction is impact resistant and provides extra protection from water.
Technical Specifications:
- Fits cable size (diameter) - .08 to .24 (2 - 6 mm)
- Height - .79 (20 mm)
- Width - 1.12 (28.5 mm)
- Color - Black
- Orientation - Horizontal
- Material - Stainless Steel
In the Box:
- Cable seal
- Mounting hardware
- Installation manual
*Sold as a Three (3) Pack
| Type | Deck Seal |
| Brand | Scanstrut |
| Weight | 0.45 lb |
| File Name | Link to the File |
|---|
