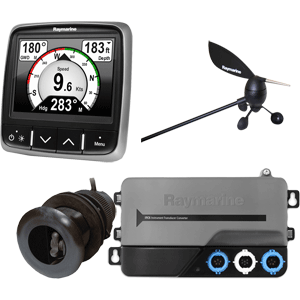

Raymarine i70s System Pack, Wind, Depth, Speed

Raymarine i70s Sailing System Pack, Wind, Depth, Speed

i70s Multi Display E70327

Maximum Visibility and Maximum Versatility

The i70s multifunction gives you the flexibility to display instrument and

navigation data that is most important to you. Equipped with a bold and

bright 4.1_ display, the i70s is easy-to-customize with digital, analogue

and graphical displays of depth, speed, wind and more. Add the i70s to your

existing Raymarine instrument system or create a network of i70s displays

and sensors, the choice is yours.

Features:

• 4.1 super bright oversized LCD for maximum visibility
• All weather optically bonded display technology delivers brighter
  colors, sharper contrast, and a wide viewing angle
• Glass bridge industrial design compliments Raymarine eS and gS Series
  multifunction displays
• Simple user interface with sculpted rubber keypad for precise operation
  in all conditions
• Customizable data displays of depth, speed, wind and more
• SeaTalkng networking for seamless connectivity to Raymarine systems and
  NMEA2000* networks
• NMEA2000 connectivity* for engine, environment fuel and navigation data
• Convenient AIS repeater mode allows you to visually track nearby AIS
  targets
• Combine the i70s with the ITC-5 instrument transducer convertor and
  connect to analog depth, speed, and wind sensors
• Network the i70s with Airmar DST800 transducers and the new in-hull P70s
  smart transducer
• Supplied with both black (eS Series style) & (e Series style) gunmetal
  bezels and protective suncover

*NMEA2000 certification pending. A DeviceNet to SeaTalknj adatop is required

for connecting the i70s to NMEA2000 backbone.

Intuitive LightHouse User Interface

The i70s places frequently used navigation functions right at your

fingertips. The LightHouse instrument interface is consistent with Raymarine

LightHouse multifunction displays, so Raymarine MFD users will feel right at

home with the i70s.

Networking

Raymarine i70s allows for connectivity to the following on board networks:

• First generation SeaTalk networks using a SeaTalk to SeaTalkng
  adapter cable
• Current generation SeaTalkng networks
• NMEA2000 networks using a SeaTalkng to DeviceNet adaptor
• In addition to flexible networking capability the i70s features
  user-selectable data sources, for integration with multi-sensor
  networks.

AIS Repeater

Display AIS targets from NMEA 2000 AIS receivers. View the closest 25

AIS-equipped vessels and select individual targets to obtain vessel

information.

iTC5 Transducer Converter E70010

The iTC5 Instrument Transducer Converter enables the use of common analog

transducer signals with new digital instrument displays like Raymarine's i70

and ST70 Plus. The ultra-compact iTC5 has connections to host the five most

common analog transducers; depth, speed/temperature, wind, compass and

rudder. The iTC5 instantly converts these 5 analog signals to digital

SeaTalk^ng protocol.

In addition to providing analog-to-digital conversion, the iTC5 provides all

of the necessary power and communications connections to the transducers.

This greatly simplifies the installation of new systems, and also provides a

simple and cost-effective means for owners of older analog instrument

displays to upgrade to the latest digital display technology. The iTC5

eliminates the need for expensive smart transducers or individual

instrument pods. Complete control for calibration and alarms is performed

through the i70 or ST70 Plus instruments.

The iTC5 connects to Raymarine's SeaTalk^ng network and works with

most analog transducers from legacy Raymarine ST30, ST40, ST50, ST60, ST80

and ST290 series instruments. Additionally the iTC5 works with Raymarine

fluxgate compass modules as well as rotary and linear rudder feedback

transducers to support compass heading and rudder angle instruments.

Features:

• All-in-one analog to digital converter for depth,
  speed/temperature, wind, compass and rudder transducers
• Outputs SeaTalk^ng and NMEA2000 data to digital instruments,
  MFDs and more
• Enables easy upgrade of legacy analog instrument displays without
  replacing transducers
• SeaTalk^ng network provides all necessary power and data
  connections
• Ideal for use with Raymarine i70 and ST70 Plus digital instrument
  systems

Wind Vane E22078

Standard Forward Wind Transducer, Standard Length: 14 1/2 Includes 100ft. Cable.

DST800 Nylon Thru hull A22154

Raymarine DST800 Nylon Thru Hull Transducer with Depth, Speed, and Temp for

ST60, ITC-5

PACKAGE CONTAINS:

1ea E70327 i70s Instrument

1ea E70010 ITC-5

1ea A22154 DST800 Transducer

1ea E22078 Standard Wind Transducer

1ea A06031 Backbone Terminator

1ea A06074 Inline Terminator

1ea A06068 Backbone Cable 9M

1ea A06049 Power Cable
