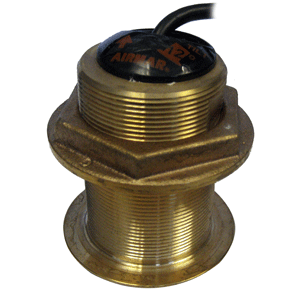

Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30
Available Stock (12)
Pay with Affirm on orders over $50. See if you qualify
Raymarine
Buy With Confidence - Authorized Dealer
Sku :
RAY-E66085
100% Brand new, authorized dealer
90 Day Returns on most items
Free delivery on most orders
B60 Tilted Element™ 20°
20° titled version is designed for 16° - 24° deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16) extending outside of the hull.
Features:
20° titled version is designed for 16° - 24° deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16) extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
| Brand | Raymarine |
| Mounting Style | Thru-Hull |
| Weight | 4.9 lb |
| Temperature | Yes |
| Speed Included | No |
| Chirp | No |
| Cable Length (Feet) | 33' |
| Imagining | Standard |
| File Name | Link to the File |
|---|
