The Raymarine Cyclone series represents a significant advancement in marine radar technology, offering robust performance and cutting-edge features tailored for both recreational and professional mariners.
Key Features of the Raymarine Cyclone Radar
1. Solid-State CHIRP Pulse Compression
The Cyclone utilizes solid-state CHIRP pulse compression technology, delivering superior target separation and long-range resolution. This results in clearer images and more accurate detection of objects at various distances.
2. RangeFusion™ Technology
Raymarine's proprietary RangeFusion™ technology combines short and long pulses into a single high-clarity radar image. This allows simultaneous viewing of close and distant targets, enhancing situational awareness.
3. High-Speed 60 RPM Imaging
With a rotational speed of up to 60 RPM, the Cyclone provides rapid updates, ensuring real-time tracking of targets and 360-degree awareness, even at high vessel speeds.
4. Cyclone Bird Mode
Designed for anglers, the enhanced Cyclone Bird Mode uses CHIRP pulse compression to detect flocks of birds at a distance, often indicating schools of fish beneath the surface.
5. Doppler Target Tracking
The Doppler mode displays targets in a three-color palette, indicating whether they are approaching, receding, or stationary. This feature simplifies the interpretation of potential threats and aids in collision avoidance.
6. Professional Grade ARPA
The Automatic Radar Plotting Aid (ARPA) system can track up to 100 targets simultaneously, providing detailed information on each, such as speed and heading. This technology is trusted by the United States Coast Guard for its reliability.
Design and Installation
Inspired by aircraft wings, the Cyclone's low-profile design stands at just 13.1 inches (335 mm) tall, allowing for flexible installation options on various vessel types. Its aerodynamic structure is engineered to withstand wind speeds up to 100 knots, meeting the commercial-grade IEC 62388 standard for shipborne radar. Additionally, the innovative pedestal design conceals cable connections, resulting in a cleaner and more streamlined installation.
Models and Specifications
The Cyclone series offers multiple models to cater to different needs:
- Cyclone 55W: Equivalent to a 6kW magnetron radar, with a maximum range of 72 nautical miles.
- Cyclone Pro 110W: Comparable to a 12kW magnetron radar, extending the range up to 96 nautical miles.
Each model is available with 3-, 4-, or 6-foot antenna arrays, providing options for various vessel sizes and applications.
Integration and Compatibility

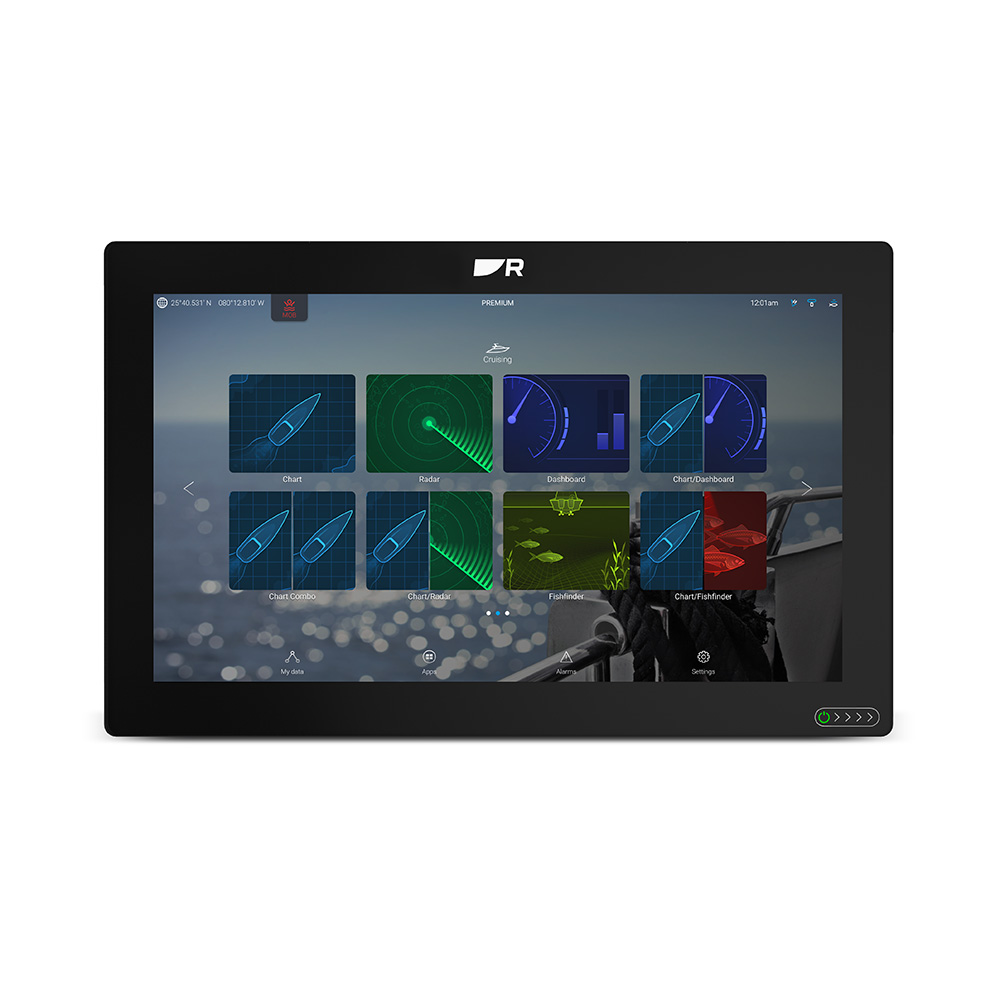

The Cyclone radars are compatible with Raymarine's Axiom series multifunction displays, including Axiom, Axiom+, Axiom Pro, and Axiom XL. This integration allows users to fully leverage the radar's capabilities through intuitive interfaces and advanced features.
User Feedback
Mariners have praised the Cyclone radar for its performance and reliability. One user noted, "My Cyclone radar has great target identification. It really helps me identify channel markers along with other boats and obstacles I want to avoid. Cyclone allows me to navigate with confidence."
